Manage ESXi services using PowerCLI

23 Nov 2015 by Jason Fenech

8 Automation and Management

Managing services on ESXi, is one task you’ll find yourself doing over and over again. In today’s post, I’ll focus on the SSH service this being from experience, one that is constantly enabled and disabled. It’s worth mentioning that disabling services that are seldom used is standard security practice as is enabling critical ones on a need-to-use only basis. The aim, here, is to reduce the attack surface of a system. Indeed, restricting SSH access on ESXi is one such example, which despite being a royal pain for many, is ultimately good practice.

There are three main methods you could use to manage the SSH service on ESXi these being the DCUI, vSphere clients and PowerCLI. Let’s review them all.

Method 1: Direct Console User Interface (DCUI)

For illustration purposes, I’m using a nested ESXi environment. In a production environment, you probably must walk or drive to where the server is located. Alternatively, you could connect remotely via an IP based KVM switch or an IPMI card to gain access. Regardless, the steps are always the same.

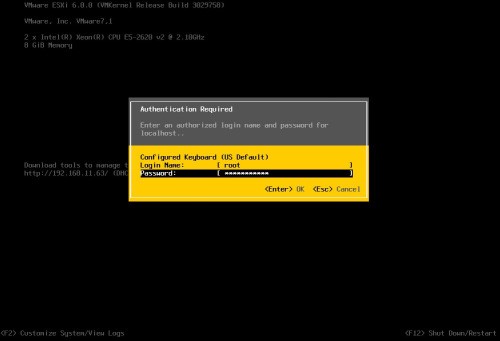

Press F2 and log in as root. Press Enter.

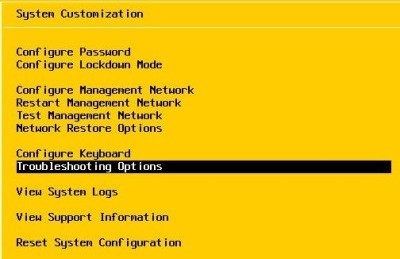

Select Troubleshooting Options from the menu. Press Enter.

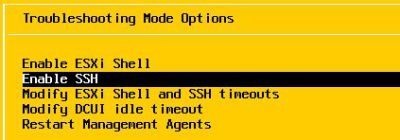

Select Enable SSH and press Enter to enable the service. Pressing Enter a second time will disable it.

Method 2: vSphere Client

I’m using vCenter to manage ESXi but you can similarly connect to an unmanaged ESXi host using the vSphere client.

UPDATE: Given a recent release of ESXi such as 6.5, you should be able to use the embedded host client to carry out the same task.

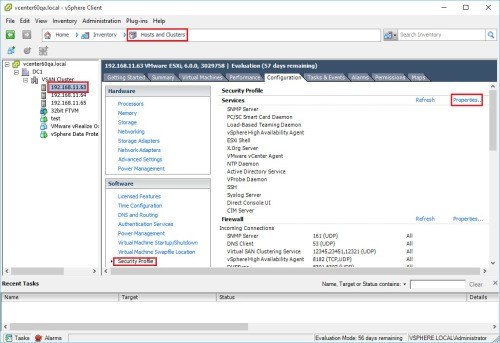

Change to Hosts and Cluster view.
Select the server where you want SSH enabled.
Select Security Profile under Software.
Click on Properties next to the Services list.

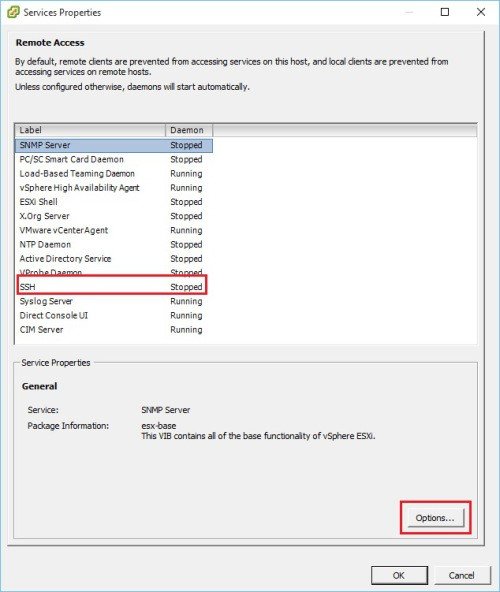

Select SSH from the Services Properties window and click on the Options button.

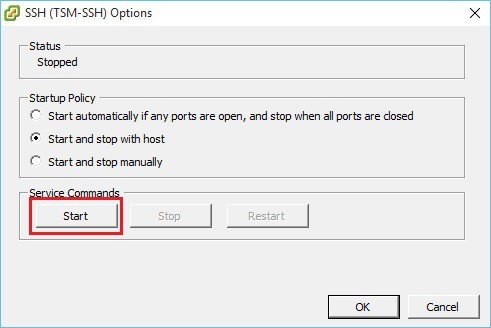

Click Start to enable the SSH service.

Method 3: The PowerCLI way

The third method, as you’ve probably guessed, involves PowerShell more specifically PowerCLI. The latter is a so called interface developed by VMware to make life a little bit easier for us admins when managing vSphere and other products.

Assuming you have PowerCLI installed, go ahead and open up a shell window; type powercli or click the corresponding icon. In the Example 1, I’ve connected directly to an ESXi host. You can also target vCenter Server using the same command – Connect-VIserver – when managing multiple hosts. The latter is illustrated via Example 2 listed further down.

Example 1: Connecting to a single ESXi host

Connect to ESXi server using the following PowerCLI statement.

connect-viserver -Server 192.168.11.63 -User root -Password Password123

1	connect-viserver -Server 192.168.11.63 -User root -Password Password123

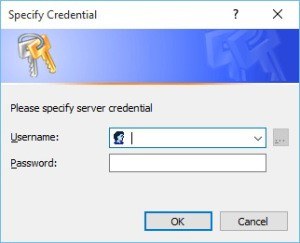

As this is a testing environment, I don’t care much about hiding the credentials used. If you’re paranoid, however, you can always drop the User and Password parameters from the command line which instead you’ll type in the credential box that pops up when the credentials parameters are omitted.

We then use the following one-liner to list all the running services on ESXi. We filter the results by using where. In this case, I’ve targeted the SSH service using the TSM-SSH keyword. Finally, I pipe the result into Start-VMHostService so I can start (enable) the SSH service.

get-vmhostservice | where {$_.Key -eq "TSM-SSH"} | Start-VMHostService

1	get-vmhostservice \| where {$_.Key -eq "TSM-SSH"} \| Start-VMHostService

Example 2: Connecting to a vCenter Server

Suppose instead that you need to enable SSH on a number of ESXi hosts managed by vCenter Server. This is where PowerCLI really shines. We just need to loop the commands illustrated so far so we can target X number of hosts instead of one.

First, we establish a connection to the vCenter server using the same Connect-VIServer PowerCLI command.

Connect-VIServer -Server 192.168.11.87 -user <your account> -password <your password>

1	Connect-VIServer -Server 192.168.11.87 -user <your account> -password <your password>

Next, let’s list the managed ESXi hosts; I have 3 nested hosts in my test environment as shown next.

Get-VMHost

1	Get-VMHost

Name ConnectionState PowerState NumCpu CpuUsageMhz CpuTotalMhz MemoryUsageGB MemoryTotalGB Version
---- --------------- ---------- ------ ----------- ----------- ------------- ------------- -------
192.168.11.63 Connected PoweredOn 4 424 8400 6.218 7.999 6.0.0
192.168.11.65 Connected PoweredOn 4 2544 8400 2.414 8.000 6.0.0
192.168.11.64 Connected PoweredOn 4 294 8400 2.431 8.000 6.0.0

Name ConnectionState PowerState NumCpu CpuUsageMhz CpuTotalMhz MemoryUsageGB MemoryTotalGB Version

---- --------------- ---------- ------ ----------- ----------- ------------- ------------- -------

192.168.11.63 Connected PoweredOn 4 424 8400 6.218 7.999 6.0.0

192.168.11.65 Connected PoweredOn 4 2544 8400 2.414 8.000 6.0.0

192.168.11.64 Connected PoweredOn 4 294 8400 2.431 8.000 6.0.0

Putting it all together, we first enumerate all the hosts. We then pipe the list of hosts into foreach. This returns a list of enabled and running services which is filtered using the SSH keyword as before. Finally, we start the SSH service irrespective if it’s already running or not.

Note: $_ corresponds to the current object in the pipeline. This is usually followed by an object’s property name.

Get-VMHost | foreach { get-vmhostservice -VMHost $_.name | where {$_.Key -eq "TSM-SSH"} | Start-VMHostService}

1	Get-VMHost \| foreach { get-vmhostservice -VMHost $_.name \| where {$_.Key -eq "TSM-SSH"} \| Start-VMHostService}

To stop the SSH service, simply substitute Start-VMHostService with Stop-VMHostService. To disable confirmation, add -confirm:$false to the end of the command.

The following videos, illustrate each of the methods covered today.

That’s all there is to it, really. I think you’ll find that managing services with PowerCLI is faster and more convenient to using console or any of the vSphere clients.

Have any questions or feedback?

8 Comments on “Manage ESXi services using PowerCLI”

Trevor August 16, 2016 at 4:14 pm

Hello Jason, Thank you for the above information. I am wondering if there is a way to stop particular services on mulitiple vm’s across hosts using PowerCLI instead of going to each vm to stop the services.

1. Jason Fenech Post authorAugust 16, 2016 at 5:24 pm

  Hi Trevor,

  I’m assuming you’re targeting Windows boxes. You can use something like;

  get-service -ComputerName vm1,vm2, … vmn -name {service name} | stop-service

  Note that the account you’re running the command with must have sufficient privileges on the Windows boxes to be able to enumerate and stop/start services.

  If the Win boxes are joined to a domain you could always use group policy especially if you want to permanently disable specific services.

  Hope this helps.

  Jason

Floren September 14, 2016 at 5:52 pm

Hi, how did you get powercli to color the output in the 3rd video?

1. Jason Fenech Post authorSeptember 15, 2016 at 9:29 am

  Hi,

  I think you’re referring to the input i.e. the commands I’m typing in the video. You can use the Set-PSReadlineOption cmdlet to change the colour input is displayed in. For instance if you want commands displayed in cyan, you’d use Set-PSReadlineOption -TokenKind Command -ForegroundColor cyan

  Use Get-PSReadlineOption for a complete list of token and current values. That said, these settings are applied automatically if you’re using a recent PowerCLI version, so your input should be similar to that in the video.

  On a similar note, if you want to colorize say a script’s output you can use something like; write-host “text to display” -ForegroundColor white -BackgroundColor blue

  Hope this helps.

  Jason

Shahnawaz October 4, 2016 at 6:55 am

How can i list active SSH sessions on ESXi using PowerCLI

1. Jason Fenech Post authorOctober 4, 2016 at 9:53 am

  Hi,

  Good question. I actually had to try this out and this is the best I could come up with;

  Connect-VIServer -server x.x.x.x -user xxxxx -password xxxxx
  (Get-EsxCli).network.ip.connection.list() | where {$_.LocalAddress -like ‘*:22’ -and $_.State -eq ‘ESTABLISHED’}

  Just replace the xxxxx’s with the ip address and creds of your ESXi host.

  I tested this on a host with 2 active connections and this is the output;

  CCAlgo : newreno
  ForeignAddress : 192.168.xxx.xxx:58409
  LocalAddress : 192.168.xxx.xxx:22
  Proto : tcp
  RecvQ : 0
  SendQ : 0
  State : ESTABLISHED
  WorldID : 34423
  WorldName : busybox

  CCAlgo : newreno
  ForeignAddress : 192.168.xxx.xxx:58028
  LocalAddress : 192.168.xxx.xxx:22
  Proto : tcp
  RecvQ : 0
  SendQ : 0
  State : ESTABLISHED
  WorldID : 34423
  WorldName : busybox

  Hope this helps.

  regards

  Jason

Charu Krishan April 5, 2017 at 10:11 pm

Hi,

We have multiple Datacenters and Clusters in our environement and want to start/stop SSH on multiple hosts, not all. Hosts on which I want to stop/start SSH service is on different Datacenters/Clusters.

Could you please guide how can I perform this?

1. Jason Fenech Post authorApril 6, 2017 at 8:52 am

  Hi,

  If you have a single vCenter instance managing the environment, get-vmhost will return a list of all the hosts in that environment. You use the list to create an array (dynamically or manually) say of those hosts on which you want SSH enabled/disabled and loop on it.

  Example:

  $hostsList = @(“192.168.1.1″,”192.168.1.2″,”192.168.1.3”)

  #Stops SSH
  foreach ($esxi in $hostslist)
  {(get-vmhostservice -VMhost $esxi | where {$_.Key -eq “TSM-SSH”}) | Stop-VMHostService -Confirm:$false}

  #Starts SSH
  foreach ($esxi in $hostslist)
  {(get-vmhostservice -VMhost $esxi | where {$_.Key -eq “TSM-SSH”}) | Start-VMHostService -Confirm:$false}

  Output should be something like this:

  Key Label Policy Running Required
  — —– —— ——- ——–
  TSM-SSH SSH on False False
  TSM-SSH SSH on False False
  TSM-SSH SSH on False False

  Hope this helps

  regards

  Jason
