Building PowerShell Tools for MSPs: HTML Tables for Reporting

This post is part of a series on PowerShell for MSPs.

Using SFTP

Working with REST APIs

How to Encrypt Passwords in PowerShell

Creating HTML reports with PowerShell is huge for MSPs. Imagine being able to deliver a scheduled weekly report detailing critical information that a client that wishes to see. Being able to do this on the fly sets your company apart from other competitors. Anything that can be queried with PowerShell can be compiled into an easily read HTML table that can be configured to run routinely and sent through email.

Querying Information with PowerShell

In this example, we will pretend that we have a server that we want to be proactive about and monitor the disk space by generating an HTML report and emailing it to our IT department.

To do this we will run the following syntax to get all volumes on the server. Get-WMIObject will allow us to make a WMI call for all physical disks. We will then save this info into a variable called $disks:

$disks = GET-WMIOBJECT win32_logicaldisk -filter "DriveType='3'"

The disk information that we get looks like this:

Notice that the FREESPACE and SIZE properties are not yet converted into bytes yet and can be hard to determine the proper value. For each disk on the server, we will want to arrange and convert the information so that we can easily create an HTML table out of it. We will do this by creating a ForEach statement and converting the sizes into GB format:

foreach($disk in $disks)
{
  $DriveLetter = $disk.DeviceID;
  $SizeGB = $disk.Size / 1GB -as [int]
  $FreeSpaceGB = $disk.FreeSpace / 1GB -as [int]
  $PercentFree = [math]::Round((1- ($freeSpaceGB/ $sizeGB)) * 100)
}

Creating the HTML Report

Now that the section is done for collecting our disk info, we can bring in the HTML. We will need to take the information for each disk and create an HTML column row for each disk, then later we will combine the column row pieces together to make one complete HTML table.  To do this we will add the following syntax into our ForEach loop. It will create a variable that contains an HTML column row of our disk information that we have queried. The </tr> tag means that we are starting a column row and the <td> tag signifies a cell is being created in the column. At the end we are adding each HTML column that we created for each disk to a variable so that we have the HTML columns for all disks :

$disks = GET-WMIOBJECT win32_logicaldisk -filter "DriveType='3'"

foreach($disk in $disks)
{
$DriveLetter = $disk.DeviceID;
$SizeGB = $disk.Size / 1GB -as [int]
$FreeSpaceGB = $disk.FreeSpace / 1GB -as [int]
$PercentFree = [math]::Round((1- ($freeSpaceGB/ $sizeGB)) * 100)

$dataRow = "
</tr>
<td>$DriveLetter</td>
<td>$SizeGB GB</td>
<td>$FreeSpaceGB GB</td>
<td>$PercentFree %</td>
</tr>
"
$diskreport += $datarow
}

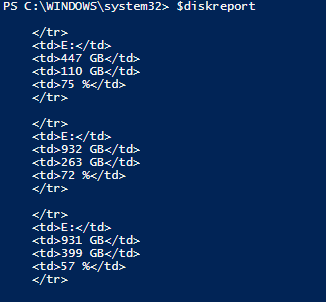

So after running this snippet that we have created we can see we have the information we want for each disk in HTML format:

Now that we have our columns created for each disk, we need to put our HTML table together. First we specify the <html> tag indicating that we are creating an HTML document. Next we use the <style> tag to define the style of the HTML document and in this example we’ll use Arial and font size 13pt. There are many different options to choose from, I recommend doing a little poking around online to figure out which style fits your report best. Next we will start off with a header called “Server Space Report” using the <h2> tag to specify the size of the header. Then we will use the <table> tag to specify we want to create a table and include the <tr> tag to specify the row and <th> to specify the header cell. Then we include our $diskreport variable which contains the HTML piece that we put together before:

$report = "<html>
<style>
{font-family: Arial; font-size: 13pt;}
TABLE{border: 1px solid black; border-collapse: collapse; font-size:13pt;}
TH{border: 1px solid black; background: #dddddd; padding: 5px; color: #000000;}
TD{border: 1px solid black; padding: 5px; }
</style>
<h2>Server Space Report</h2>
<table>
<tr>
<th>Volume</th>
<th>Total Space</th>
<th>Free Space</th>
<th>Percent Full</th>
</tr>
$diskreport
</table>
<tr>
"

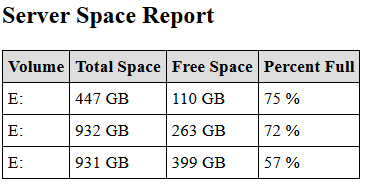

Now our HTML table is finished. If we output our $report variable to an HTML file and open it in a web browser, we can see the result, an easy on the eyes HTML report:

Emailing the HTML Report

Now that we have our table created, lets configure the rest of our script to send it via email to our IT department. To do this we simply use the Send-MailMessage cmdlet and specify the -To and -From parameters as well as the –SMTPServer parameter. Also, we will include the $report variable in our -body parameter:

Send-MailMessage -To [email protected] -From [email protected] -Body $report -subject "Server Disk Space Report" -SmtpServer mysmtpserver.com

Now we are done. When we run this script we get the disk space on the server, format it into HTML, and send it via email to our IT department. This script can be configured to run daily or whenever desired through task scheduler on the server. Here is our whole script:

$disks = GET-WMIOBJECT win32_logicaldisk -filter "DriveType='3'"

foreach($disk in $disks)
{
$DriveLetter = $disk.DeviceID;
$SizeGB = $disk.Size / 1GB -as [int]
$FreeSpaceGB = $disk.FreeSpace / 1GB -as [int]
$PercentFree = [math]::Round((1- ($freeSpaceGB/ $sizeGB)) * 100)

$dataRow = "
</tr>
<td>$DriveLetter</td>
<td>$SizeGB GB</td>
<td>$FreeSpaceGB GB</td>
<td>$PercentFree %</td>
</tr>
"
$diskreport += $datarow

}

$report = "<html>
<style>
{font-family: Arial; font-size: 13pt;}
TABLE{border: 1px solid black; border-collapse: collapse; font-size:13pt;}
TH{border: 1px solid black; background: #dddddd; padding: 5px; color: #000000;}
TD{border: 1px solid black; padding: 5px; }
</style>
<h2>Server Space Report</h2>
<table>
<tr>
<th>Volume</th>
<th>Total Space</th>
<th>Free Space</th>
<th>Percent Full</th>
</tr>
$diskreport
</table>
<tr>
"

Send-MailMessage -To [email protected] -From [email protected] -Body $report -subject "Server Disk Space Report" -SmtpServer mysmtpserver.com

Wrap-Up

There are so many use cases for these HTML tables. In the field, I have created tons of HTML reports for various purposes. The latest reporting script I’ve created was one that checks the HP iLO configurations on all servers in the environment to ensure that all the iLO settings are correct and then generates an email to report on the servers that are not up to “company standards”. Creating these nice looking HTML reports will be sure to impress your co-workers and clients. Let me know in the comments below on the different use cases you have come a crossed where an HTML report like this would be handy.

More articles about how MSPs can make the most out of PowerShell in their operations:

Using SFTP

Working with REST APIs

How to Encrypt Passwords in PowerShell

Tell me your experiences with Powershell

Powershell is undoubtedly a very powerful tool for MSPs. Have you used it with HTML tables for reporting before and if so how did it go? If you haven’t tried it yet and you’re following the steps in this guide let me know how you get on and also feel free to ask me any questions if you have any problems or you’re unsure about anything I’ve written here in the comment section below.

Hungry for More Automation for MSPs Tips?

Watch our on-demand webinar 4 Ways to Improve your MSP by Embracing Automation and DevOps hosted by Microsoft Cloud and Datacenter Management MVPs Andy Syrewicze and Adam “The Automator” Bertram. The webinar covers:

  • Simple ways to get started with automation
  • How PowerShell can help save time and money when used for lengthy tasks
  • How treating your scripts like code can prevent mistakes and costly problems
  • How Leveraging REST APIs can enable further automation and operational efficiencies

4 Ways to Improve your MSP by Embracing Automation and DevOps

Get a 30-day trial of Altaro VM Backup for MSPs

Manage all your customer VM backups from a single cloud console, on a monthly subscription. Try Altaro VM Backup for MSPs for 30 days - no strings attached!

Share this post

Not a DOJO Member yet?

Join thousands of other IT pros and receive a weekly roundup email with the latest content & updates!

3 thoughts on "Building PowerShell Tools for MSPs: HTML Tables for Reporting"

  • Wessel van Sandwijk says:

    Hi Luke, you can also do it like this, using a class to create the object.

    class DiskSize {

    #Properties
    [string]$DriveLetter
    [int64]$SizeGB
    [int64]$FreeSpaceGB
    [string]$PercentFree = “$($FreeSpaceGB / $SizeGB * 100 -as [int])%”
    }

    $Disks = foreach($Disk in Get-WmiObject WIN32_LogicalDisk -filter “DriveType=’3′”){
    $Process = [DiskSize]::new()
    $Process.DriveLetter = $Disk.DeviceID
    $Process.SizeGB = $Disk.Size / 1GB -as [int]
    $Process.FreeSpaceGB = $Disk.FreeSpace / 1GB -as [int]
    $Process
    }

    $CSS = ”

    {font-family: Arial; font-size: 13pt;}
    TABLE {border: 1px solid black; border-collapse: collapse; font-size:13pt;}
    TH {border: 1px solid black; background: #dddddd; padding: 5px; color: #000000;}
    TD {border: 1px solid black; padding: 5px; }

    $Report = ”
    $($CSS)
    Server Space Report ($(Get-date))
    $($Disks | ConvertTo-Html -Fragment)
