The use cases for a hypervisor on the desktop are quite different from those for hypervisors in the datacenter. With only a few exceptions, datacenter virtual machines run around the clock, quietly providing services behind the scenes. They aren’t logged onto very often, and then usually only for administrative purposes. If a virtual machine is running on the desktop at all, its also typically open in a window and seeing regular interaction. It’s reasonable to expect more from that experience than might be typical for server-side virtualization. One of the technologies that help Client Hyper-V to meet that expectation are RemoteFX.

The server editions of Hyper-V also offer RemoteFX. It’s not used as frequently, is disabled by default, and has more requirements. The complete RemoteFX experience on the server requires the Remote Desktop Services stack to be employed, and server-class accelerated GPUs are quite expensive and uncommon. It’s a different story for Client Hyper-V because desktops commonly contain accelerated graphics adapters. Beyond having such an adapter, there are no particular requirements for Client Hyper-V’s RemoteFX.

What is RemoteFX in Client Hyper-V?

I once undertook a journey to enumerate the features of RemoteFX, and gave up after a while. RemoteFX is an umbrella term for several technologies designed to enhance the Remote Desktop/VMConnect experience for Hyper-V guests. Most commonly, we think of video capability because that is the most obvious component, but it is not the only one. If you’re interested in the other RemoteFX technologies, I’ll leave you to perform your own quest. What we’re most concerned with is video. Windows 10’s Client Hyper-V provides strong support for RemoteFX video, which mostly means 3D acceleration. It is available by default, but you must specifically configure a RemoteFX video adapter for each virtual machine that you intend to use it with. I would strongly recommend that you proceed with caution when adding this adapter to any virtual machine whose guest operating system is not explicitly supported by Hyper-V. This TechNet article shows the supported Windows guests and there are menu items at the left that will take you to the lists of supported Linux guests.

Note that RemoteFX video might not be required for a satisfactory Client Hyper-V experience. Some 2D acceleration is available without a RemoteFX adapter. It’s not great, but only your needs can determine if it is acceptable. Also note that RemoteFX video will not magically transform your Client Hyper-V guest into a video gaming powerhouse, regardless of the capabilities of your graphics adapter.

You usually do not need to take any particular steps to enable RemoteFX video for your hosting Windows 10 system. If your video adapter has a DirectX 11.1-compatible driver, it will almost certainly work. In Hyper-V Manager, access the properties of your Windows 10 system and look on the Physical GPUs tab for something like the following screenshot. If you can’t select Use this GPU with RemoteFX, then you have an adapter that won’t work. If your adapter is capable, Hyper-V will have already enabled it.

Basic Configuration - RemoteFX Adapter

Basic Configuration – RemoteFX Adapter



Adding and Configuring a RemoteFX Video Adapter to a VM in Hyper-V Manager

It’s quick and simple to add a RemoteFX video adapter to a virtual machine with Hyper-V Manager. It does not matter what Generation the guest is. These screenshots are for a Generation 1 virtual machine, but the instructions are the same for Generation 2.

  1. In Hyper-V Manager, verify that the target virtual machine is Off. If it isn’t, you’ll need to get it into that state. If it’s online, shut it off. If it’s saved or paused, resume it and then shut it down.
  2. Right-click on the target virtual machine and click Settings...
  3. The Add Hardware tab should already be active. Highlight RemoteFX 3D Adapter and click Add. If the item is disabled, the virtual machine isn’t off or your adapter does not meet the requirements for RemoteFX.
    Adding a RemoteFX Adapter

    Adding a RemoteFX Adapter



  4. A new tab will be added to the VM’s settings dialog named RemoteFX 3D Video Adapter. You can configure the settings as suits you.

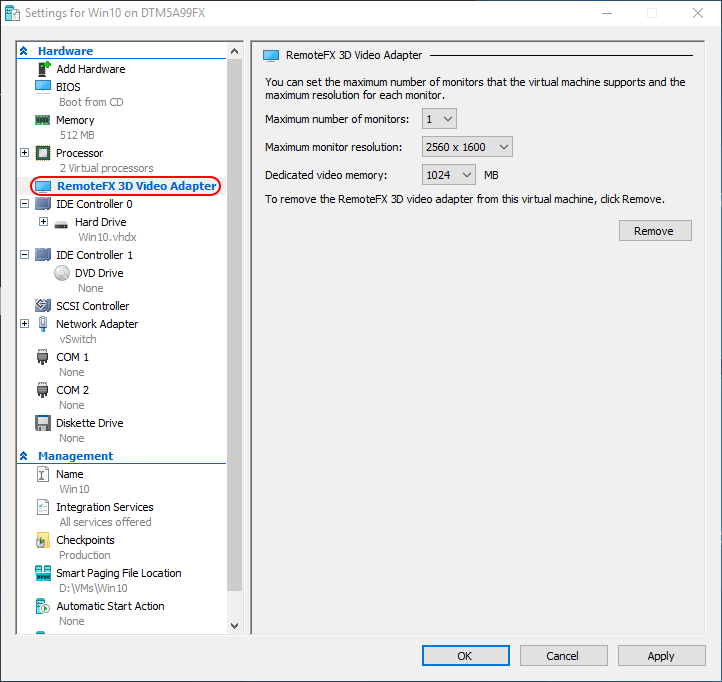

    RemoteFX Adapter Settings

    RemoteFX Adapter Settings



  5. The adapter is not truly added until you click OK or Apply, but you can return to this dialog any time that the virtual machine is off to adjust the settings. You can also use the Remove button if you’d rather just use the 2D acceleration. There is a finite number of active virtual machines that your video card will support, so you may find that you need to remove it from some guests if you are running several simultaneously.

Adding and Configuring a RemoteFX Video Adapter to a VM in PowerShell

Adding a RemoteFX adapter in PowerShell is trivial. Configuring it can be a bit tricky.

To add the RemoteFX adapter:

A -VM parameter is also available, and it will accept piped virtual machine objects or names for bulk operations.

To configure the adapter, use Set-VMRemoteFx3dVideoAdapter. You can use -VM or -VMName just as you did with Add-VMRemoteFx3dVideoAdapter. You can also pipe in the output from a Get-VMRemoteFx3dVideoAdapter run to select an adapter. The three parameters of interest are -MaximumResolution, -MonitorCount, and -VRamSizeBytes. As far as I can tell, there’s no way to know in advance what the valid options are (unless you look in Hyper-V Manager or something). So, you can just feed it some gibberish. The error messages will tell you what you can use:

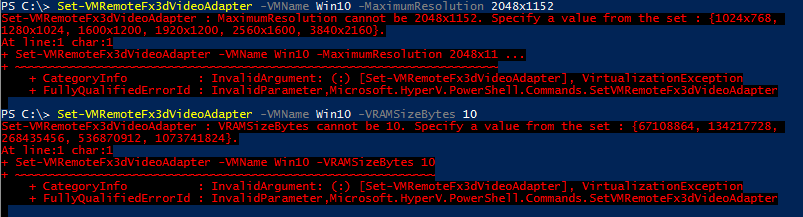

Set RemoteFX 3D Adapter Errors

Set RemoteFX 3D Adapter Errors



With valid values (for my card):

Using the RemoteFX Video Adapter

As soon as you boot up the guest, the RemoteFX video adapter is ready to go. If it doesn’t boot or it won’t show a screen, then your guest operating system probably doesn’t support RemoteFX. Here’s a screen shot of the newly-installed Microsoft RemoteFX Graphics Device – WDDM from within a Windows 10 guest’s Device Manager:

RemoteFX Adapter in Device Manager

RemoteFX Adapter in Device Manager



I would not get excited that you can now start running a bunch of 3D games in Client Hyper-V. That’s not really what RemoteFX is for. A game might work, but it might not. More “run-of-the-mill” applications, like web browsers and operating system GUIs are incorporating 3D, and that’s where you’ll see the most differences with a RemoteFX adapter. As you can see in Device Manager, you’re not getting a direct projection of your video adapter, which means that you’re not going to be able to load the manufacturer’s specific hardware driver, which means that you cannot expose its full capabilities to the guest.
