Some time ago, I discovered uses for Hyper-V Key-Value Pair Data Exchange services and began exploiting them on my Windows guests. Now that I’ve started building Linux guests, I need similar functionality. This article covers the differences in the Linux implementation and includes version 1.0 of a program that allows you to receive, send, and delete KVPs.

For a primer on Hyper-V KVP Exchange, start with this article: Hyper-V Key-Value Pair Data Exchange Part 1: Explanation.

The second part of that series presented PowerShell scripts for interacting with Hyper-V KVP Exchange from both the host and the guest sides. The guest script won’t be as useful in the context of Linux. Even if you install PowerShell on Linux, the script won’t work because it reads and writes registry keys. It might still spark some implementation ideas, I suppose.

What is Hyper-V Key-Value Pair Data Exchange?

To save you a few clicks and other reading, I’ll give a quick summary of Hyper-V KVP Exchange.

Virtual machines are intended to be “walled gardens”. The host and guest should have limited ability to interact with each other. That distance sometimes causes inconvenience, but the stronger the separation, the stronger the security. Hyper-V’s KVP Exchange provides one method for moving data across the wall without introducing a crippling security hazard. Either “side” (host or guest) can “send” a message at any time. The other side can receive it — or ignore it. Essentially, they pass notes by leaving them stuck in slots in the “wall” of the “walled garden”.

KVP stands for “key-value pair”. Each of these messages consists of one text key and one text value. The value can be completely empty.

How is Hyper-V KVP Exchange Different on Linux?

On Windows guests, a service runs (Hyper-V Data Exchange Service) that monitors the “wall”. When the host leaves a message, this service copies the information into the guest’s Windows registry. To send a message to the host, you (or an application) create or modify a KVP within a different key in the Windows registry. The service then places that “note” in the “wall” where the host can pick it up. More details can be found in the first article in this series.

Linux runs a daemon that is the analog to the Windows service. It has slightly different names on different platforms, but I’ve been able to locate it on all of my distributions with sudo service --status-all | grep kvp. It may not always be running; more on that in a bit.

Linux doesn’t have a native analog to the Windows registry. Instead, the daemon maintains a set of files. It receives inbound messages from the host and places them in particular files that you can read (or ignore). You can write to one of the files. The daemon will transfer those messages up to the host.

On Windows, I’m not entirely certain of any special limits on KVP sizes. A registry key can be 16,384 characters and there is no hard-coded limit on value size. I have not tested how KVP Exchange handles these extents on Windows. However, the Linux daemon has much tighter constraints. A key can be no longer than 512 bytes. A value can be no longer than 2,048 bytes.

The keys are case sensitive on the host and on Linux guests. So, key “LinuxKey” is not the same as key “linuxkey”. Windows guests just get confused by that, but Linux handles it easily.

How does Hyper-V KVP Exchange Function on Linux?

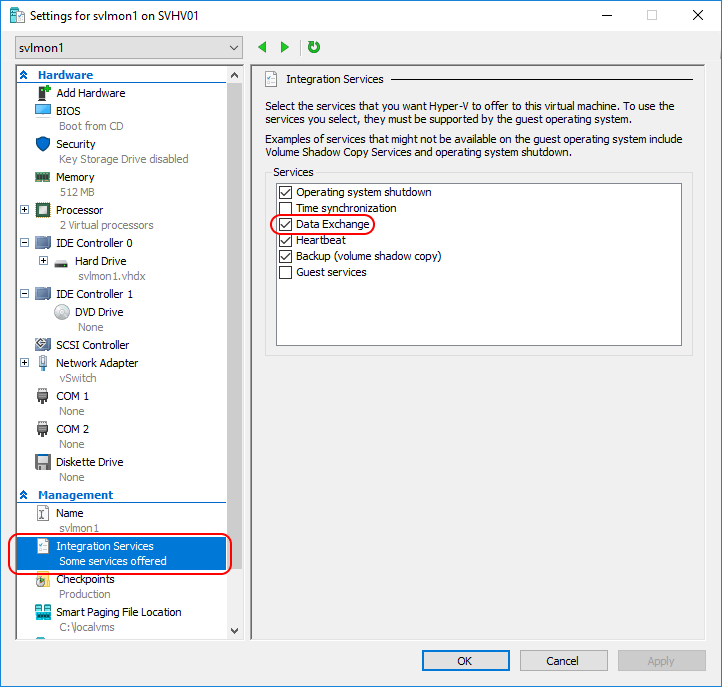

As with Windows guests, Data Exchange must be enabled on the virtual machine’s properties:

Hyper-V KVP Exchange on Linux

The daemon must also be installed and running within the guest. Currently-supported versions of the Linux kernel contain the Hyper-V KVP framework natively, so several distributions ship with it enabled. As mentioned in the previous section, the exact name of the daemon varies. You should be able to find it with: sudo service --status-all | grep kvp. If it’s not installed, check your distribution’s instruction page on TechNet.

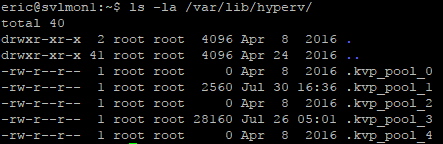

All of the files that the daemon uses for Hyper-V KVP exchange can be found in the /var/lib/hyperv folder. They are hidden, but you can view them with ls‘s -a parameter:

Hyper-V KVP exchange

Anyone can read any of these files. Only the root account has write permissions, but that can be misleading. Writing to any of the files that are intended to carry data from the host to the guest has no real effect. The daemon is always monitoring them and only it can carry information from the host side.

What is the Purpose of Each Hyper-V KVP Exchange File?

Each of the files is used for a different purpose.

  • .kvp_pool_0: When an administrative user or an application in the host sends data to the guest, the daemon writes the message to this file. It is the equivalent of HKLMSOFTWAREMicrosoftVirtual MachineExternal on Windows guests. From the host side, the related commands are ModifyKvpItems, AddKvpItems, and RemoveKvpItems. The guest can read this file. Changing it has no useful effect.
  • .kvp_pool_1: The root account can write to this file from within the guest. It is the equivalent of HKLMSOFTWAREMicrosoftVirtual MachineGuest on Windows guests. The daemon will transfer messages up to the host. From the host side, its messages can be retrieved from the GuestExchangeItems field of the WMI object.
  • .kvp_pool_2: The daemon will automatically write information about the Linux guest into this file. However, you never see any of the information from the guest side. The host can retrieve it through the GuestIntrinsicExchangeItems field of the WMI object. It is the equivalent of the HKLMSOFTWAREMicrosoftVirtual MachineAuto key on Windows guests. You can’t do anything useful with the file on Linux.
  • .kvp_pool_3: The host will automatically send information about itself and the virtual machine through this file. You can read the contents of this file, but changing it does nothing useful. It is the equivalent of the HKLMSOFTWAREMicrosoftVirtual MachineGuestParameter key on Windows guests.
  • .kvp_pool_4: I have no idea what this file does or what it is for.

What is the Format of the Hyper-V KVP Exchange File on Linux?

Each file uses the same format.

One KVP entry is built like this:

  • 512 bytes for the key. The key is a sequence of non-null bytes, typically interpreted as char. According to the documentation, it will be processed as using UTF8 encoding. After the characters for the key, the remainder of the 512 bytes is padded with null characters.
  • 2,048 bytes for the value. As with the key, these are non-null bytes typically interpreted as char. After the characters for the value, the remainder of the 2,048 bytes is padded with null characters.

KVP entries are written end-to-end in the file with no spacing, headers, or footers.

For the most part, you’ll treat these as text strings, but that’s not strictly necessary. I’ve been on this rant before, but the difference between “text” data and “binary” data is 100% semantics, no matter how much code we write to enforce artificial distinctions. From now until the point when computers can process something other than low voltage/high voltage (0s and 1s), there will never be anything but binary data and binary files. On the Linux side, you have 512 bytes for the key and 2,048 bytes for the value. Do with them as you see fit. However, on the host side, you’ll still need to get through the WMI processing. I haven’t pushed that very far.

How Do I Use Hyper-V KVP Exchange for Linux?

This is the part where it gets fun. Microsoft only goes so far as to supply the daemon. If you want to push or pull data, that’s all up to you. Or third parties.

But really, all you need to do is read to and/or write from files. The trick is, you need to be able to do it using the binary format that I mentioned above. If you just use a tool that writes simple strings, it will improperly pad the fields, resulting in mangled transfers. So, you’ll need a bit of proficiency in whatever tool you use. The tool itself doesn’t matter, though. Perl, Python, bash scripts,… anything will do. Just remember these guidelines:

  • Writing to files _0, _2, _3, and _4 just wastes time. The host will never see it, it will break KVP clients, and the files’ contents will be reset when the daemon restarts.
  • You do not need special permission to read from any of the files.
  • _1 is the only file that it’s useful to write to. You can, of course, read from it.
    • Deleting the existing contents deletes those KVPs. You probably want to update existing or append new.
    • The host only receives the LAST time that a KVP is set. Meaning that if you write a KVP with key “NewKey” twice in the _1 file, the host will only receive the second one.
    • Delete a KVP by zeroing its fields.
  • If the byte lengths are not honored properly, you will damage that KVP and every KVP following.

Source Code for a Hyper-V KVP Exchange Utility on Linux

I’ve built a small utility that can be used to read, write, and delete Hyper-V KVPs on Linux. I wrote it in C++ so that it can be compiled into a single, neat executable.

Long-term, I will only be maintaining this project on my GitHub site. The listing on this article will be forever locked in a 1.0 state.

Compile Instructions

Each file is set so that they all live in the same directory. Use make to build the sources and sudo make install to put the executable into the /bin folder.

Install Instructions

Paste the contents of all of these files into accordingly-named files. File names are in the matching section header and in the code preview bar.

Transfer all of the files to your Linux system. It doesn’t really matter where. They just need to be in the same folder.

Run:

Usage Instructions

Get help with:

  • hvkvp –help
  • hvkvp read –help
  • hvkvp write –help
  • hvkvp delete –help

Each includes the related keys for that command and some examples.

Code Listing

The file list:

  • makefile
  • main.cpp
  • hvkvp.h
  • hvkvp.cpp
  • hvkvpfile.h
  • hvkvpfile.cpp
  • hvkvpreader.h
  • hvkvpreader.cpp
  • hvkvpremover.h
  • hvkvpremover.cpp
  • hvkvpwriter.h
  • hvkvpwriter.cpp

makefile

main.cpp



hvkvp.h



hvkvp.cpp



hvkvpfile.h



hvkvpfile.cpp



hvkvpreader.h



hvkvpreader.cpp



hvkvpremover.h



hvkvpremover.cpp



hvkvpwriter.h



hvkvpwriter.cpp
